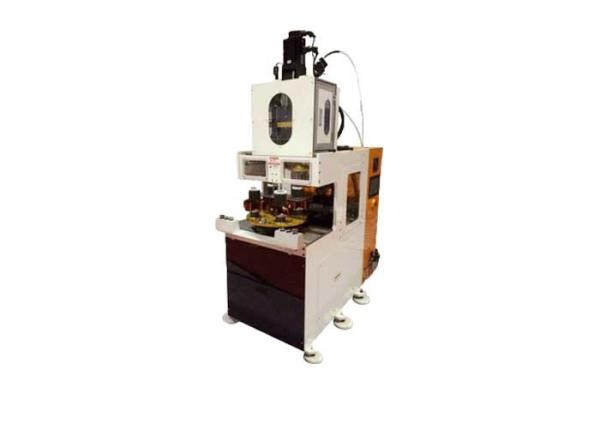

FULL automatic two working stations stator coil winding machine

Application of full automatic two working stations stator coil winding machine

This automatic stator winding machine is suitable for 2 poles, 4 poles and 6poles coils winding.

1. Main technical data of NIDE full automatic two working stations stator coil winding machine

(2) Brief Instruction of Machine

Machine "2 Winding Heads Automatic Washing Machine Electrical Motor Winding Machine" is used for winding copper / aluminum wires to several coils automatically and putting them into transfer cup orderly.
It adopts six servo motors to control the motion, like high-speed mold dipping, turntable rotating and transfer cup indexing and so on. It can achieve higher qualification rate.
Operators need to stand when operating.

(3) Main Specifications

1. A kind of double-head and four-station automatic winding machine;
2. It can wind two phases at one time, which can wind single or multiple wires.
3. Automatic put the coil into transfer former orderly;
4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;
5. Especially suitable for stators with high slot fill factor and small slot opening;
6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;
7. Parameters can be set in human-machine interface, winding tension is adjustable;
8. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;
9. It saves labor and has high efficiency.
