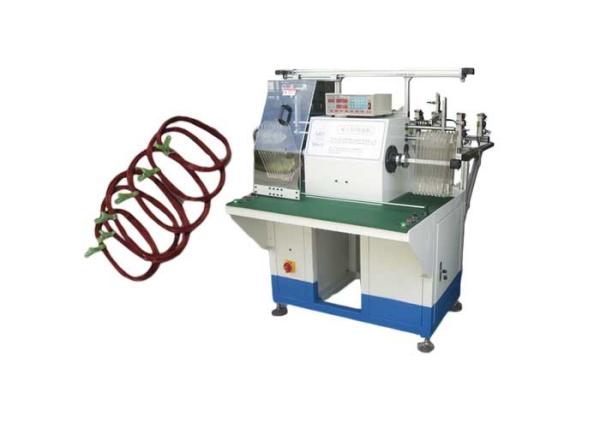

Automatic Two Station with Turntable AC/DC Motor Coil Winding Machine SMT-SR350

Equipped with double winding stations and winding heads, which can wind two group coils at one time or separately automatically. Operator need to unload coils manually. Two stations are working separately so that it can save time of loading and unloading because one is winding and the other one can be unloaded.

(1) Technical Parameters

(2) Brief Instruction of Machine

Machine "Automatic Two Station with Turntable AC/DC Motor Coil Winding Machine" is used for winding electric wires to the winding tools automatically and orderly. It's special for double separate work stations.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.

(3) Main Specifications

1. It is newly developed for high-power motor of general-purpose use.
2. Two stations can work individually, while one is at operation, the other can be unloaded, which is characterized by less intermittent time, higher utilization ratio and output.
3. Automatic coil span program & turns count.
4. Automatic cut and reset & manual clamp.
5. Automatic cut, re-clamp and start can be set by optional controller.
6. Tooling loaded/unloaded manually.
7. Can be equipped with an optional through-sleeve device.
8. It has various kinds of operate mode, such as multilayer tapped winding, slot-hopping winding, multi-wire winding, automatic insulated sleeve assembly, etc. are available.
9. It is mainly applied to coil winding for three phase motor, generator motor and deep pump motor.

(4) Services

We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

(5) Production Line Service

With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.


(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.

More wonderful videos and pictures can be found by below links. We're waiting for you there!

SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. We,Suzhou Smart Motor Equipment Manufacturing Co., Ltd. has two main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature ,stator production, and the motor assembly line, The second division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

Our Machine Production Process,Our motor stator production line is widely used in the manufacturing of many kinds of motor stators. This stator production line includes several machines, such as paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, and forming machine. Each machine in this stator production line is stand-alone, meanwhile, it can also be connected with conveyor.
