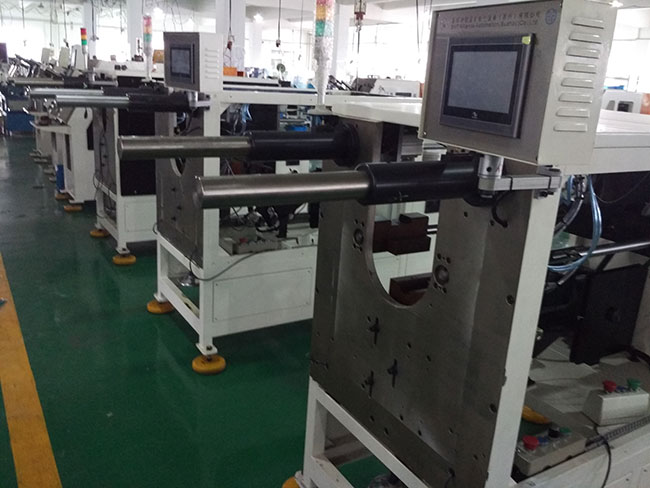

Deep Pump Motor Insulation Paper Inserting Machine 50Hz / 60Hz

1. With horizontal frame design, controlled by industrial programmable PLC, the machine is used for winding and wedge automatically inserting.

2. It adopts AC servo motor driving system, AC frequency conversion speed regulation system, pneumatic system.

3. It can achieve wedge length setting, feeding, cutting, forming and inserted into stator together with coil automatically.

4. Coil inserting speed can be set at different section.

5. Wedge feeding mode can be set according to different motor.

6. Equipped with human-machine control interface, it has the function of status display, malfunction alarm, various parameters setting, etc.

7. It has the characteristics of widely application, high automatic, easy operation and convenient tooling change.

(1) Main Technical Features

(2) Application

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

(3) Our Service

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(4) OEM/ODM

Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

(5) Production Line Profile

With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

(6) About Us

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.

SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. We,Suzhou Smart Motor Equipment Manufacturing Co., Ltd. has two main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature ,stator production, and the motor assembly line, The second division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

Our Machine Production Process,Our motor stator production line is widely used in the manufacturing of many kinds of motor stators. This stator production line includes several machines, such as paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, and forming machine. Each machine in this stator production line is stand-alone, meanwhile, it can also be connected with conveyor.
