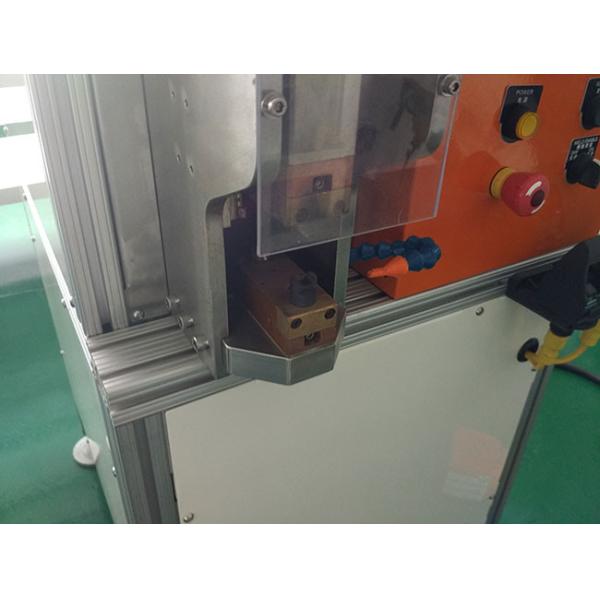

ISO9001 Automatic Fusing Machine For DC motor And Universal Motor
This machine can automatically fuse, and operator only need to load
and unload rotor. It can weld both riser and hook type commutators.
This machine is applied to DC motor and universal motor. It is
controlled by PCL, all the data setting can be done on the touch
sreeen. There are four power control method, namely secondary
constant current, secondary constant voltage secondary constant
frequency.
(1) Product General Information
| Brand Name: | SMT |
| Model Number: | K3220 |
| Certification: | SGS/ISO9001 |
| Place of Origin: | China |
| Product Name | Stator Lead Wire Tube Fusing Machine | Application | Electric motor stator production |
| Status | New | Paint | On request |
| Warranty time | One year after machine(s) arrive in customer’s plant | Service | Overseas service center available |
(2) Description
1.Machine, electrical cabinet and disconnect mounted to aluminum
extrusion table.
2.Heavy duty construction utilizing SMT K-Head design.
3.SMT machine enamel paint unless otherwise quoted.
4.20 kva water cooled transformer.
5.400VAC, 50 Hz – 60 Amp input required.
7.Control of squeeze time (prior to fuse), upslope time, fuse time,
fuse current, cool time, repeats, hold time and force of head
during fuse.
8.Capability to store and recall up to fifty (50) different fuse
schedules.
(3) Patented Tube Fusing Technology
In tube fusing, traditional connectors are made redundant by a
simple and inexpensive tube which captures the wires to be
connected. Resistively heated fusing electrodes apply the necessary
pressure and heat to the tube/wire bundle to make a reliable
connection. These machines are versatile for most any application
including fusing magnet wires, Litz.wire and/or insulated leads
within a tube terminal.
(4) Eliminate Stripping and Brazing
This patented technology eliminates the need for an operator to
strip the magnet wire from the leads prior to fusing the lead
bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel,
the heat of the fusing operation burns off the wire enamel while
the tin from the tube cleans the area to be connected. The force of
the head combined with the controlled heating of the electrode
creates a reliable connection while minimizing manual operations.
(5) Thermal Crimp Fusing Technology
With the patented thermal crimp technology, the connector is
automatically made from a strip of tinned copper material. This
connector is then presented to the operator for placement of the
magnet wire and/or lead wire. Once fused, excess wire is trimmed
from the connector resulting in the smallest possible package with
the highest quality connection.
(6) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the
high-tech key enterprises which specialize in designing, producing
and selling motor manufacturing equipments in China. The company
now has nearly 150 employees, including more than 30 engineers and
technicians, with the building area about 20,000 square meters and
a hundred sets of advanced production and test equipments. It is
now qualified for designing and manufacturing full production line
(starts from coil winding to final forming of a stator) for AC
motors such as home appliance motor, industrial medium and small
motors, pump motor, rolling door motor and automobile motor etc. In
2012, SMT passed the certification of ISO9001:2000 Quality
Management System.
